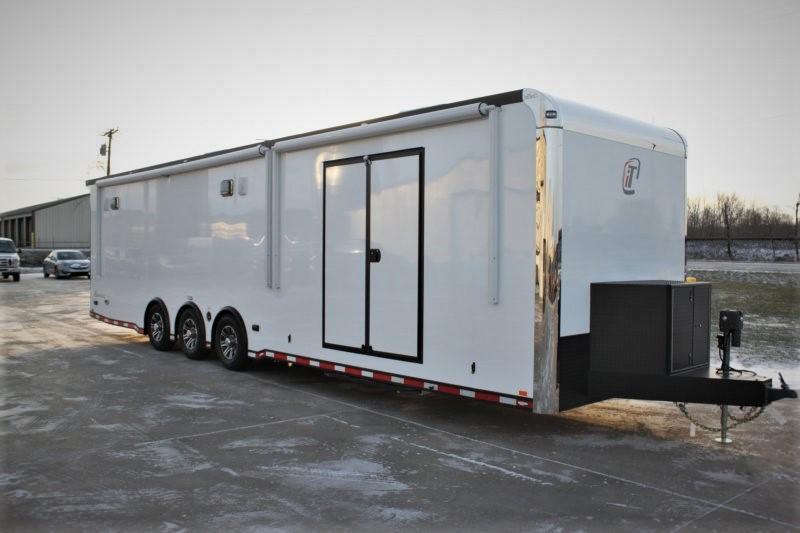

2025  InTech  34' Fully Loaded, w/ Generator, Escape Door, Toolbox, Awning  ICON - 1N34P18-USTK-SPO

Stock #: 1N34P18-USTK-SPO

THIS TRAILER IS SPECIAL ORDER ONLY

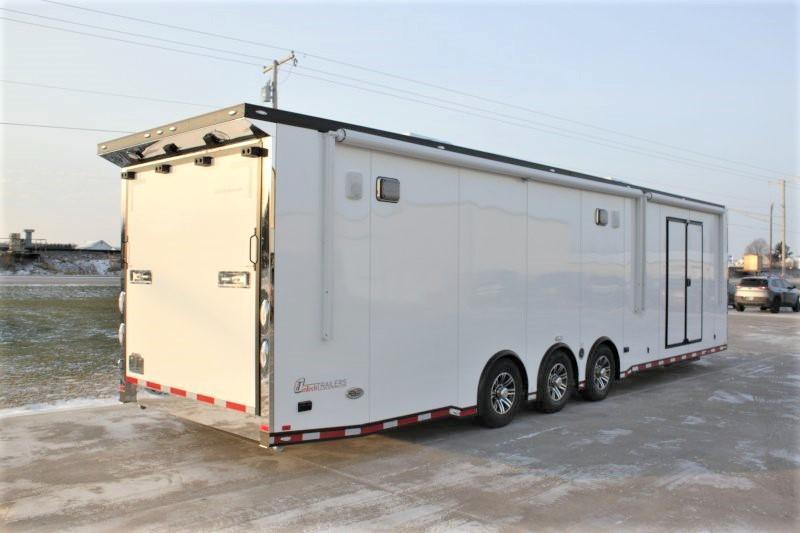

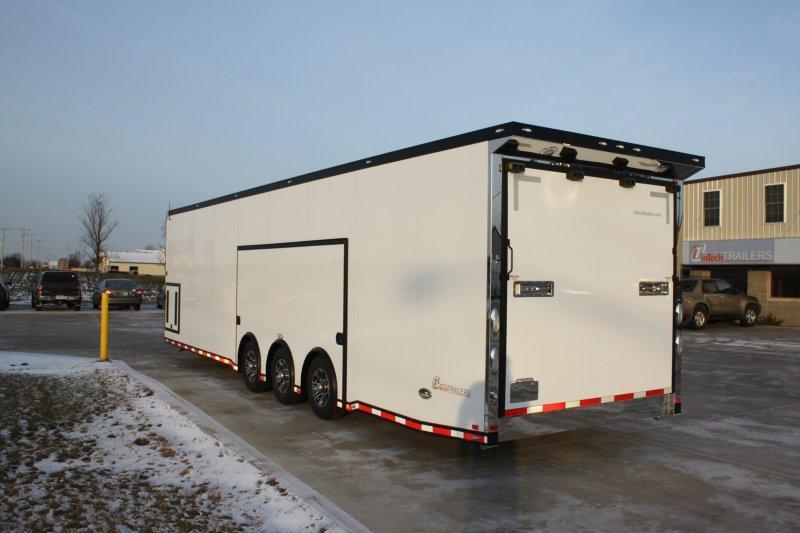

This Intech 34' Icon is ideal for the serious racer / enthusiast. It features extensive options that provide not only a ton of utility, but style as well. Featuring a 7KW Onan generator, full access 10x5 escape door, 2 A/C units, 2 power awnings, tool chest, carpet on walls, 5' ramp flap, power jack, Whelen 900 series exterior LED's , stereo, black anodized package and much, much more. Full build sheet below, be sure to check out the pictures!

Ready to step up a notch for the season? give us a call today on this amazing 34' Intech

**BUILD INFO**

Length: 34.00
Width: 8.50
Height: 7.50

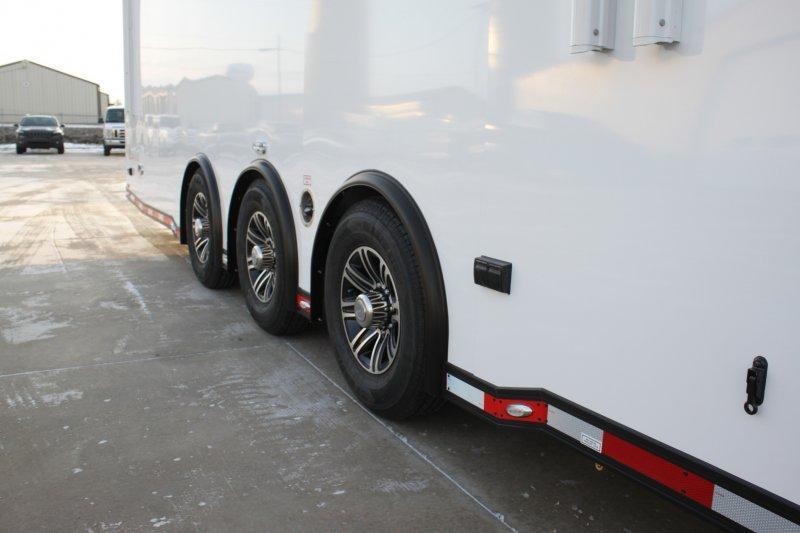

Number of Axles: 3
Axle Type: 6000# Torsion Axles
Exterior Color: White
Interior Color: Silver Frost
Cabinet Color: Black
Cove Color: Black
Wheel Style: T09 Black

Model #: BTA8534TTA4

Chassis- Full Perimeter Aluminum Frame

* All-Tube Aluminum Construction
* Triple Tube A-Frame
* Dexter Torsion Axles
* Electric Brakes - All Axles
* Breakaway Battery Kit
* 7-Way Trailer Plug
* 2 5/16" Ball Coupler
* Safety Chains w/ Storage Loop
* 5000# Manual Jack
* 16" O/C Floor Crossmembers
* 16" O/C Wall Studs
* 16" O/C Roof Studs
* Smooth Aluminum Wheel Boxes
* Spread Axle Design w/ Individual Fenderettes
* ST235/80R16 Nitro Filled Tires w/ Steel Wheels

Interior:

* One-Piece Aluminum Subfloor Vapor Barrier
* 3/4" Plywood Subfloor
* (2) 12V LED Dome Lights w/ Switch
* (1) 12V Power Roof Vent w/ Switch
* 6.5' Interior Height- (4) 5000# Recessed D-Rings
* 4' Interior Beavertail

Exterior:

* .030 Aluminum Skin
* Screwless/Rivetless Aluminum Exterior
* One Piece Aluminum Roof
* Arched & Trussed Walk-On Service Roof
* 3" Upper and Lower Rub Rail
* LED Premium Clearance Lights
* LED Slimline Tail Lights
* 24" ATP Stoneguard
* 36" 405 Series Entrance Door
* FMVSS Premium Entrance Door Latch
* Color Matched Front Verticals
* Rear Ramp Door w/ Gapless Continuous Hinge
* Aluminum Bar Locks
* Rear Ramp Door
* Rear Skid Plates

Selected Options:

34' iCon Package

Exterior Icon Upgrades:

* 40" x 36" 405 Series Generator Door
* Aluminum Slide Out Step
* Awning Rail
* Extended Tongue
* FMVSS Side Door Lock

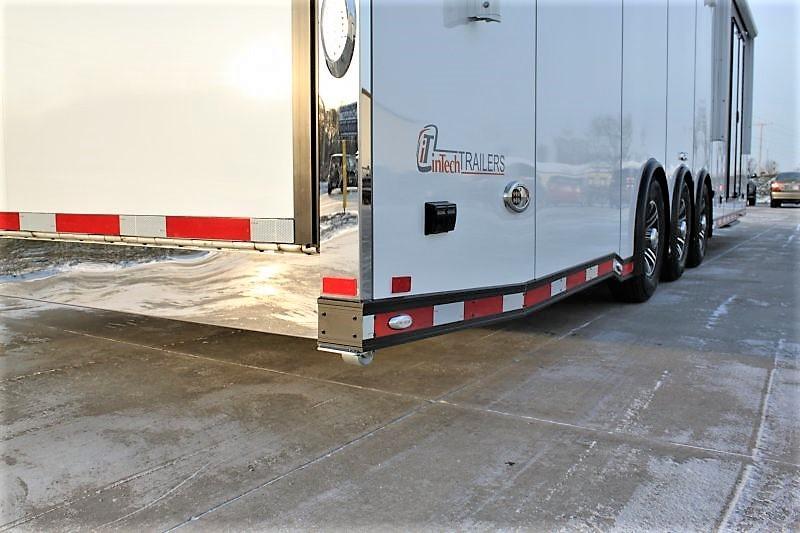

* Stainless Steel Rear Header & Posts
* Upgrade to .040 Exterior Aluminum Skin
* Upgrade to 4" Upper & Lower Side Trim
* Upgrade to 48" 405 Series Door
* Upgrade to 7' Interior Height
* Upgrade to Aluminum Wheels
* Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
* Upgrade to Stainless Steel Paddle Latches

Electrical Upgrades:

* 50 Amp Electrical Service
* 50 Amp Gen Prep w/ Transfer Switch
* Requires 240V Panel Upgrade to Use 240V
* Motorbase Plug & 25' Shore Cord
* 12V Battery & Box Wired

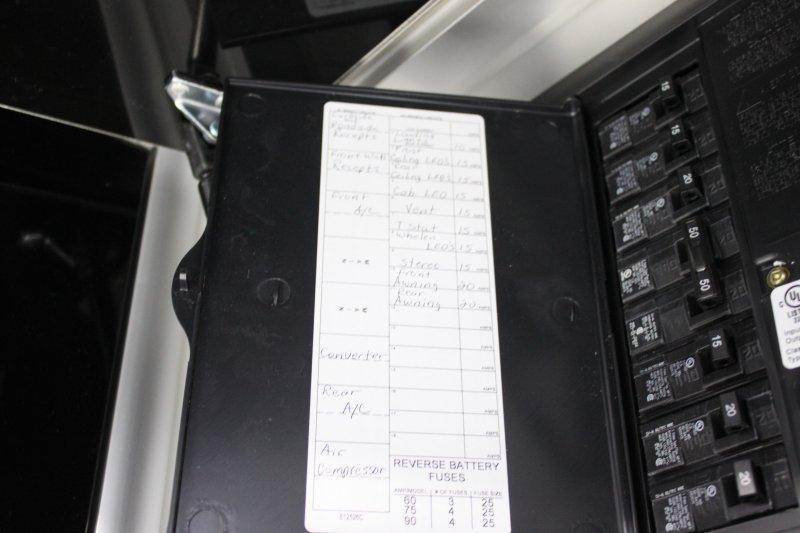

* 12V Fuse Panel
* 60 Amp Converter for 12V
* (4) 12V 18" LED Interior Lights - Replaces Domes
* (1) 15 Amp Exterior Recept
* (3) 15 Amp Interior Recepts
* 3 Way Light Switch for Interior LED Lights
* (2) 120V 500 Watt Quartz Halogen Lights
* 12V Cutoff Switch
* Upgrade to Panel Lite Exterior Lights
* Upgrade to Dual Brake Lights

Interior Upgrades:

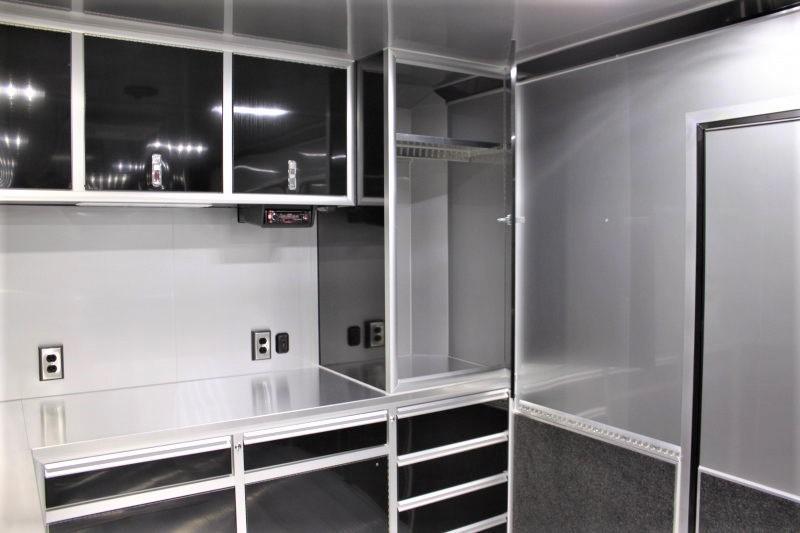

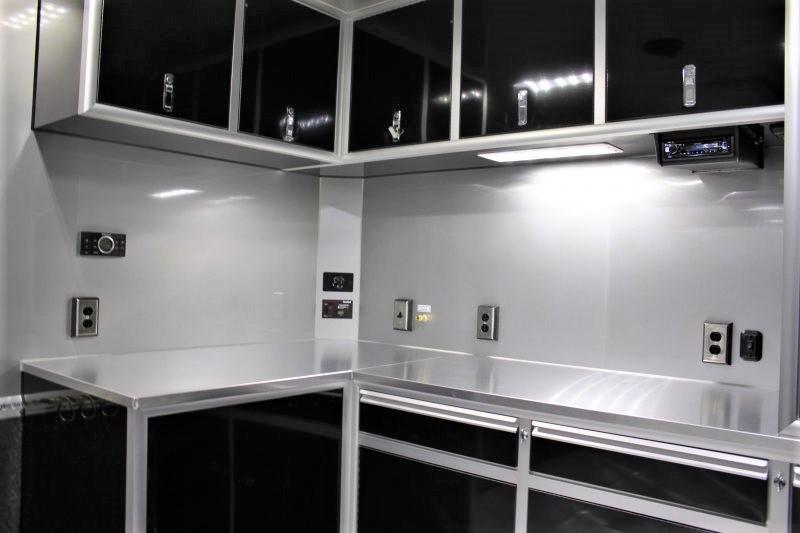

* 8' Premium Aluminum L Shaped Lower Cabinet
* 8' Premium Aluminum Upper Cabinet
* Roof Vent w/ Wire for Future AC
* Extruded Aluminum Floor
* Extruded Aluminum Ramp
* Gen Compartment in L Cabinet
* LED Light Under Upper Cabinet
* One Piece Aluminum Transition Flap
* Screwless Aluminum Walls & Ceiling
* 8' Interior Height Maximum w/ Package
* Downgrade to Straight Base Cabinet From L-Base- Deletes Gen Door - Deletes Generator Prep Package
* Upgrade to .050 Exterior Aluminum Skin from .040 / Ft
* SS Upgrade Required on Corners & Taper/Wedge Breaks
* Upgrade 500W Quartz Recessed Light to Whelen 900 Series Super LED - Dimmer Switch Included
* Upgrade to Recessed Stainless Steel Latches into Ramp Door From Paddle Latches- Pair
* Delete Beavertail
* 6" Additional Height / Ft
* Rear Caster Wheels - Pair
* Upgrade to 4500# Front Power Jack w/ Wireless Remote - Battery Not Included

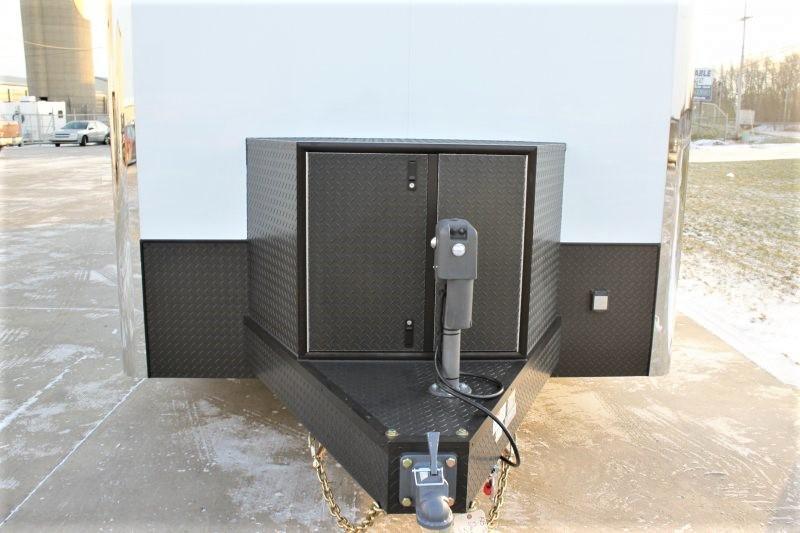

* ATP Tongue Storage Box w/ Front Double Doors- - Extended Tongue Required - Not Included
* ATP Tongue Cover Included
* Specify A-Frame Tapered or Rectangular
* Standard 18" Tall x 24" Deep
* Uses Trigger Latches & No Center Style
* Front Doors Not Fully Sealed 30"T x 24"D
* Spare ST235/80R16 on Steel Wheel
* Upgrade to Aluminum 16" Wheel From 16" Steel Wheel - Per Wheel - SPARE TIRE

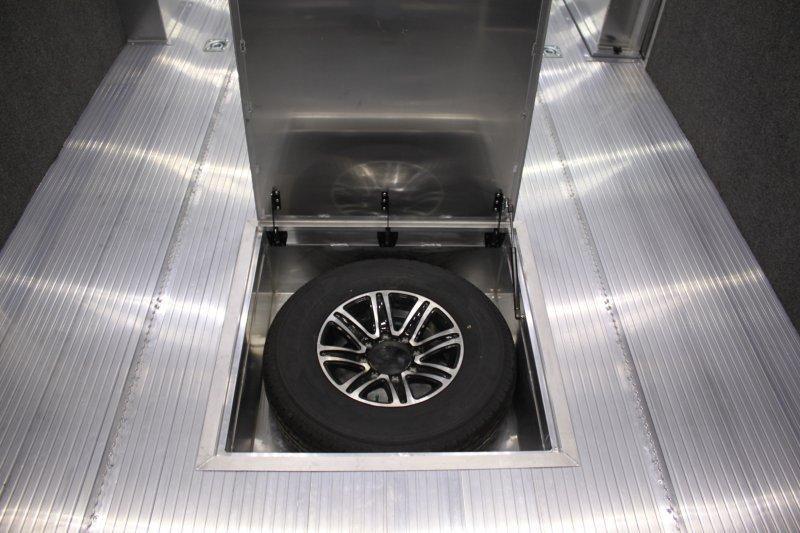

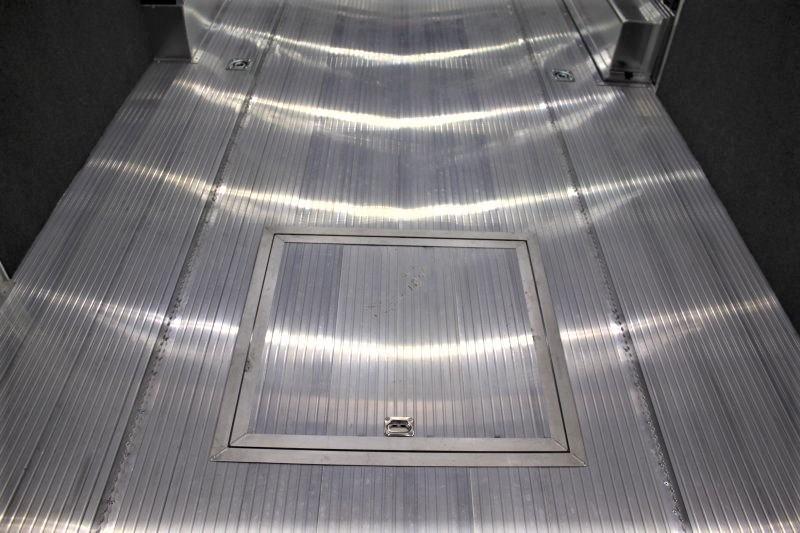

* In Floor Spare Tire Compartment- Uses Hidden Hinges & Gas Shock
* Upgrade to 60" 405 Series Double Door

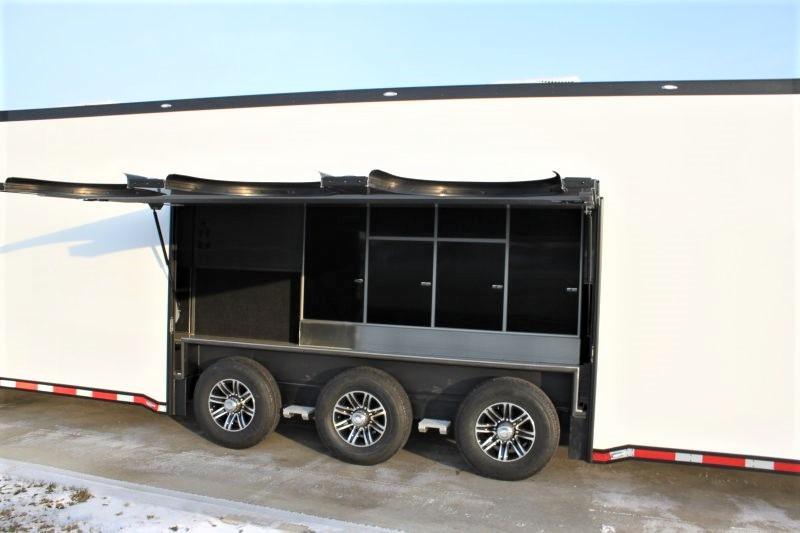

* Full Access Escape Door - 5' Tall - Triple and Super Spread Tandem Axle
* Quick-Remove Interior Wheelbox
* (2) Gas Shocks
* Integrated Wheel Well Step Included
* SS Side Trim Not Available
* Includes (2) FMVSS Locks
* 5' Aluminum Ramp Extension - 84" Wide w/ 3" Bumpers

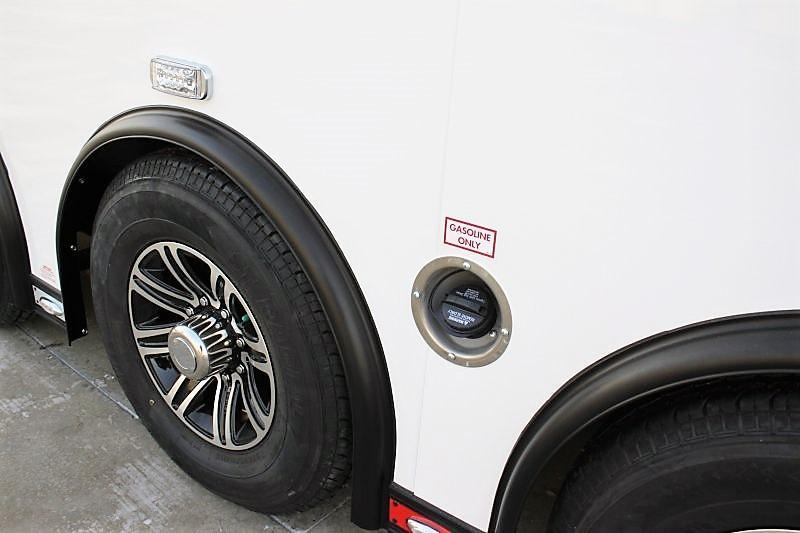

* 7.0KW Onan Generator Package (120V/240V) - Gasoline- In Frame Fuel Tank
* Interior Insulated Generator Compartment
* 40" x 36" 405 Series Vented Gen Door
* Automatic Transfer Switch
* 12V Marine Grade Battery in Vented Box
* Remote Start, Fuel Gauge & Hour Meter
* Requires 240V Panel Upgrade to Use 240V

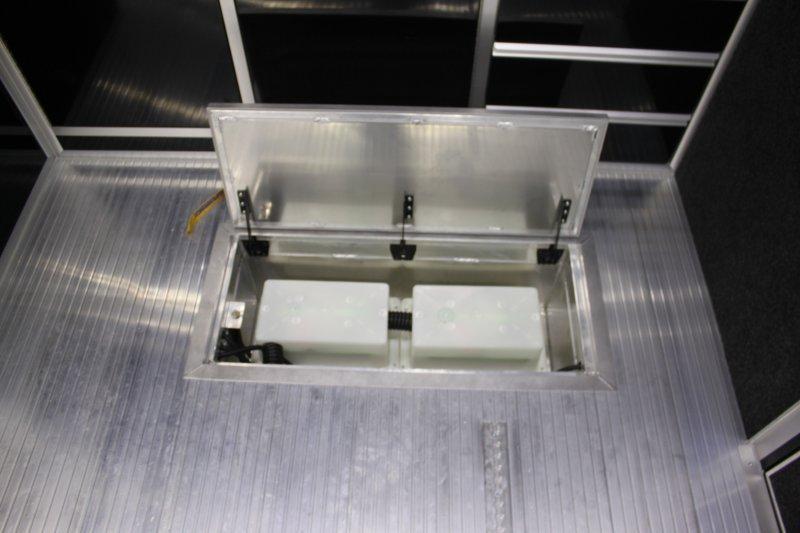

* In Floor Battery Compartment for (2) Batteries
* 120V 15A Recept - GFI Protected Where Required
* 3 Way Light Switches (Pair)
* 12V 18" LED Interior Light- Maximum of (6) Per Switch

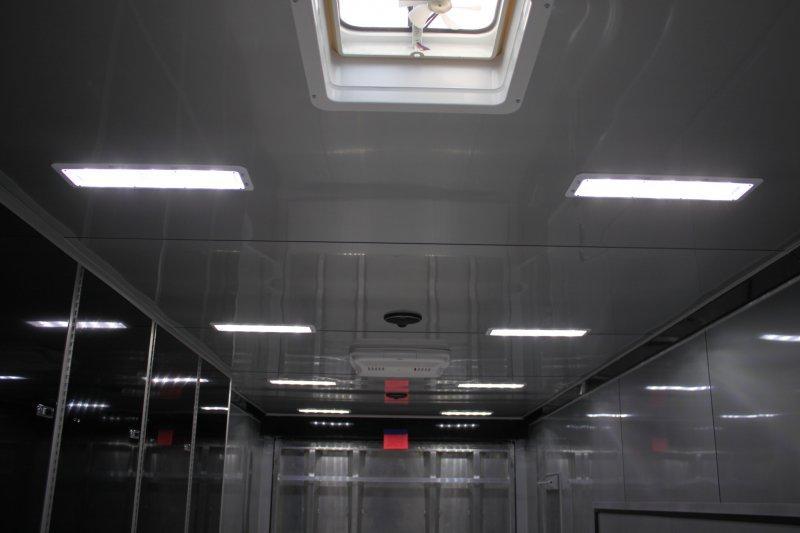

* (12) 18'' ceiling lights Total
* Panelite LED Clearance Light (Ea)
* Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
* 12V LED Docking Back Up Flood Lights (Pair)- Floods Area Behind Trailer when in Reverse
* Carpet on Interior Walls - 34" High / Ft
* Insulated Walls & Ceiling - R4 Rated (Up to 18" Additional Height) / Ft- Bubble Foil Insulated Ceiling

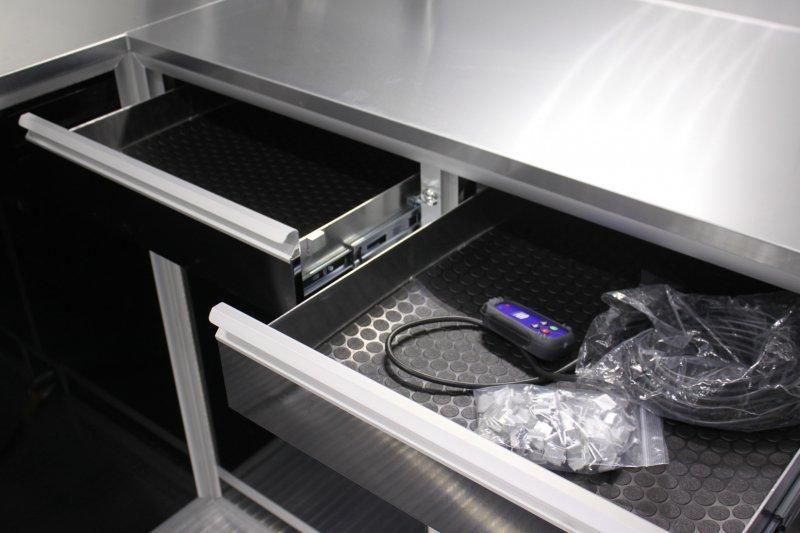

* Add Tool Chest Bank to Lower Cabinet w/ Clear Anodized Trim - 5 Drawer Configuration
* Single Drawer to Standard Base Cabinet Above Door
* Aluminum Dresser Closet to Lower Cabinet- Standard: 24" x 24" x Up to 84"
* Wheel Well Cabinet Triple Axle - Width of Wheel Well- (2) Adjustable Shelves in Each Compartment
* Airline Track - Surface Mounted
* Airline Track - Recessed
* Airline Track Double Stud Tie Down Ring

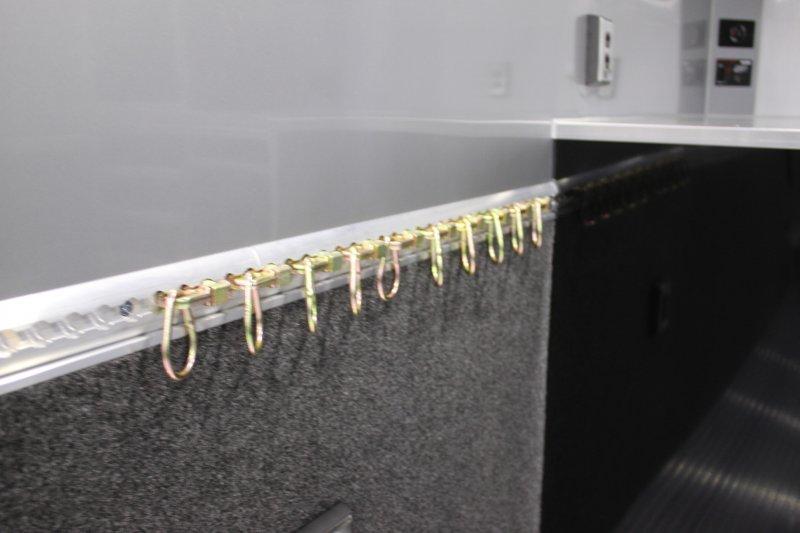

* 18" Wide Tie Down Strap Hangers - Pair- Protective Wall Carpeting Installed Between Hangers
* Upgrade to Lowered Skirt w/ Reverse Beavertail Design - Triple Axle
* Color Matched Rear Spoiler Original Style- Includes (2) Integrated LED Loading Lights
* Wiring for Loading Lights on Rear Spoiler to Activate as Reverse Lights
* Black Anodized Exterior Package - (Includes Upgrade to Items as Optioned on Order)- ATP Tongue Cover & Sides
* Stoneguard & J-Rail
* Entrance Door Step
* (1) Entrance Door Exterior Trim
* (1) Generator Door Exterior Trim
* Fenders
* 4" Upper and Lower Rub-Rail
* T-Trim & Angle Around Rear Ramp Door
* Drip Rail
* Awning Rail
* Rear Ramp Door Grab Handles
* Awning - 11' Dometic w/ Weathershield - 12V Power Awning- Std: Pewter Vinyl w/ White Hardware on White Trailers
* Awning - 19' Dometic w/ Weathershield - 12V Power Awning- Std: Pewter Vinyl w/ White Hardware on White Trailers
* 13,500 BTU A/C - Low Profile (11.25")
* Drip-Drain Kit for Air Conditioner - Only Available on Low Profile
* Upgrade to Heat Strip for A/C
* Upgrade to Digital Wall Mount Thermostat for A/C
* Winch Plate in Floor for Future Winch Installation
* Pass Through Hole for Winch to Lower Base Cabinet- Includes False Panel w/ Hole
* Fairlead Roller Installed Behind Opening for Winch Lead

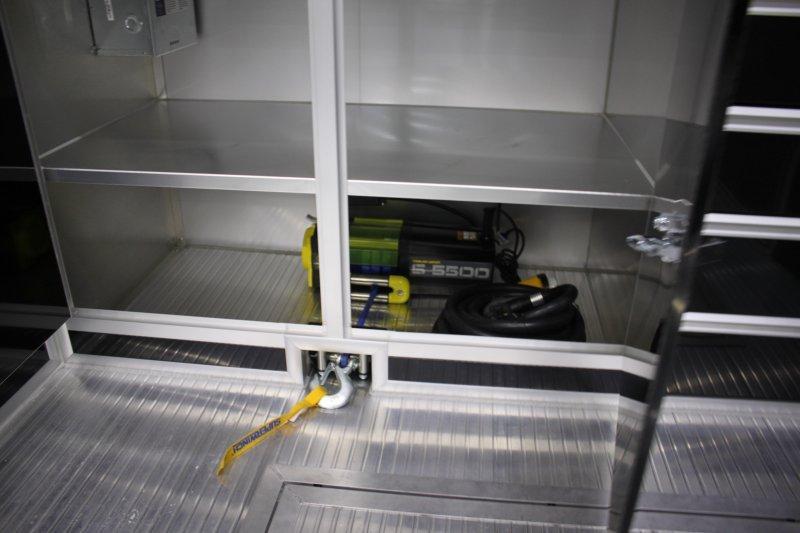

* 5500# Winch w/ Wireless Remote Control & Synthetic Rope
* Air Compressor w/ 3 Hardlined Outlets- Outlet is Switched with a Dedicated Switch
* AM/FM/CD Bluetooth Stereo w/ Four Interior Speakers- Bluetooth Input Capable from iPhone or Android
* (2) Exterior Speakers to Radio- Includes Amplifier
* Upgrade Interior Speakers to Component w/ Separate Tweeter
* Upgrade Black Anodized ATP Tongue Box
