2021  InTech  BTA8534TTA4  - 16737-SPO

Stock #: 16737-SPO

THIS TRAILER IS SPECIAL ORDER ONLY

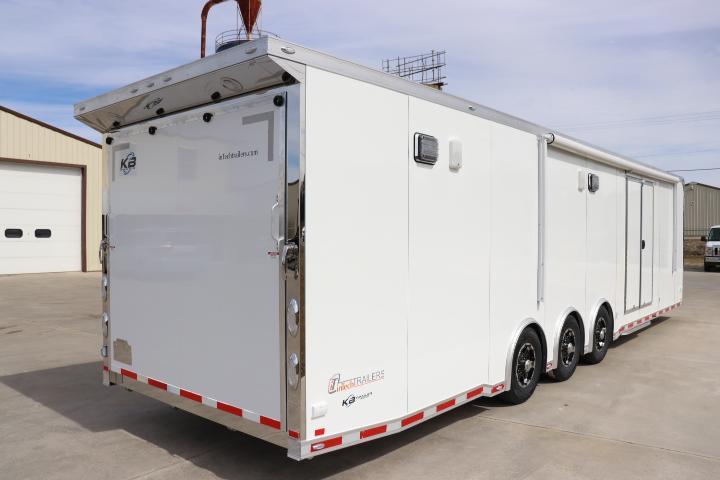

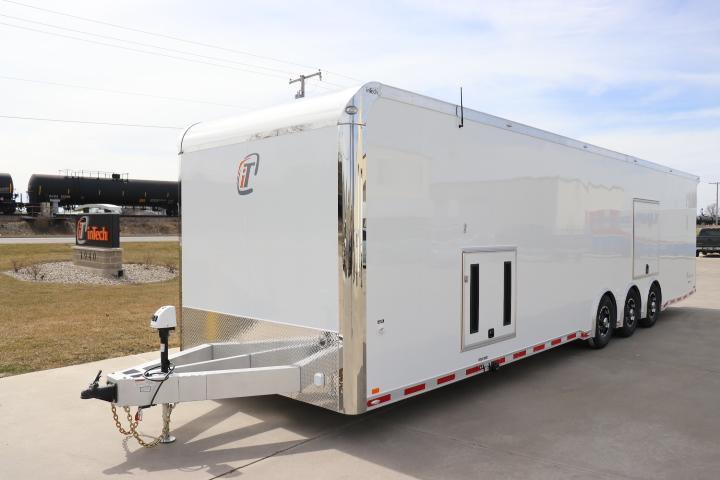

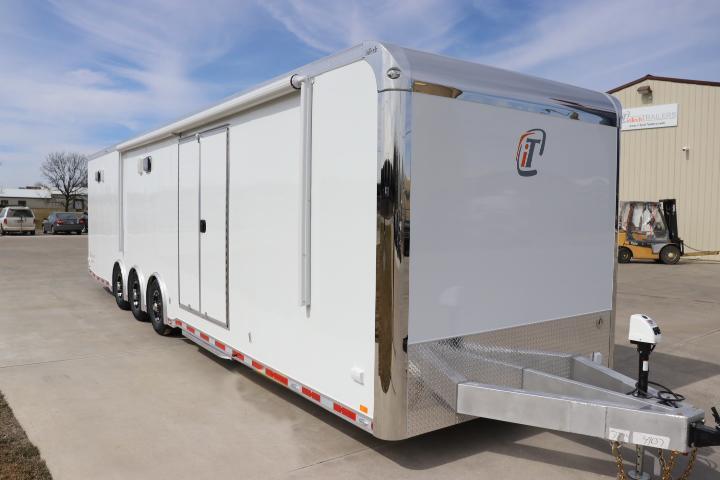

**34' inTech All Aluminum Race Car Trailer with Bathroom Pkg, Cabinets, Awning, A/C & More.**

*Pictures are for representation only. Actual options of current trailer may vary* *.*

See build sheet & prints below

Length: 34.00
Width: 8.50
Height: 7.00
Number of Axles: 3

Axle Type: 6000#
Torsion Axles
Exterior Color: White
Interior Color: Silver
Frost
Cabinet Color: Black
Cove Color: Black
Wheel Style: Turismo
Black
VIN: 7H0TT3433MN006228 Model #: BTA8534TTA4

**Chassis** - Full Perimeter Aluminum Frame - All-Tube Aluminum Construction - Triple Tube A-Frame - Dexter Torsion Axles - Electric Brakes - All Axles- Breakaway Battery Kit - 7-Way Trailer Plug

* 2 5/16" Ball Coupler
* Safety Chains w/ Storage Loop
* 5000# Manual Jack
* 16" O/C Floor Crossmembers
* 16" O/C Wall Studs
* 16" O/C Roof Studs
* Smooth Aluminum Wheel Boxes
* Spread Axle Design w/ Individual Fenderettes
* ST235/80R16 Nitro Filled Tires w/ Steel Wheels

**Interior**

* One-Piece Aluminum Subfloor Vapor Barrier
* 3/4" High Performance Drymax Subfloor
* (2) 12V LED Dome Lights w/ Switch
* (1) 12V Power Roof Vent w/ Switch
* 6.5' Interior Height
* (4) 5000# Recessed D-Rings
* 4' Interior Beavertail

**Exterior**

* .030 Aluminum Skin
* Screwless/Rivetless Aluminum Exterior
* One Piece Aluminum Roof
* Arched & Trussed Walk-On Service Roof
* 4" Upper and 6" Lower Rub Rail
* Clear Anodized Exterior Trim Package
* LED Premium Clearance Lights
* LED Slimline Tail Lights
* 24" ATP Stoneguard
* 36" 405 Series Entrance Door
* FMVSS Premium Entrance Door Latch
* Color Matched Front Verticals
* Rear Ramp Door w/ Gapless Continuous Hinge
* Aluminum Bar Locks - Rear Ramp Door
* Rear Skid Plates

**Selected Options:** 34' iCon Package (Tag)

**Exterior Upgrades**

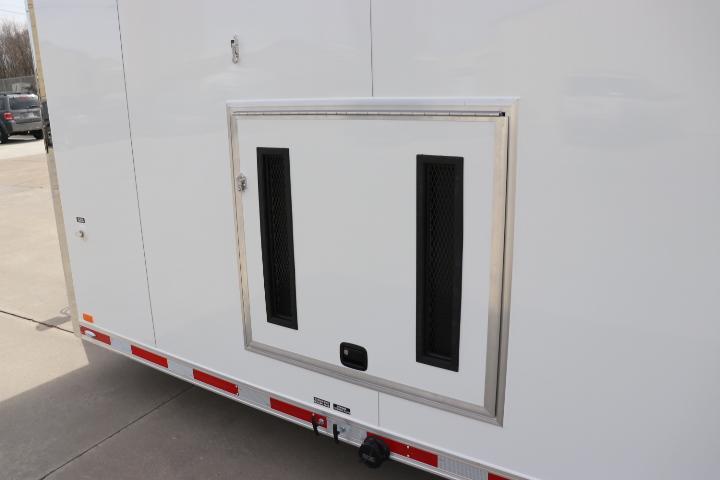

* 40" x 36" 405 Series Generator Door

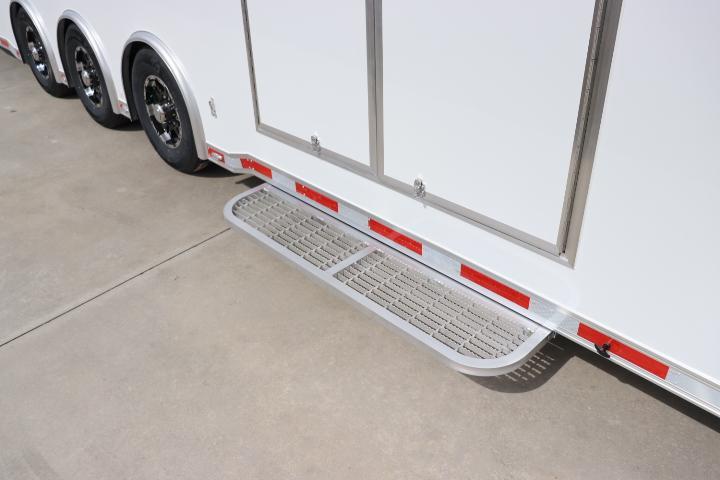

* Aluminum Slide Out Step
* Awning Rail
* Extended Tongue
* Stainless Steel Rear Header & Posts
* Upgrade to .040 Exterior Aluminum Skin
* Upgrade to 48" 405 Series Door
* Upgrade to 7' Interior Height
* Upgrade to Aluminum Wheels
* Upgrade to Cast Corners w/ Stainless Steel
Verticals & Radius
* Upgrade to Stainless Steel Paddle Latches

**Electrical Upgrades**

* 50 Amp Electrical Service
* 50 Amp Gen Prep w/ Transfer Switch
* Requires 240V Panel Upgrade to Use 240V
* Motorbase Plug & 25' Shore Cord
* 12V Battery & Box Wired

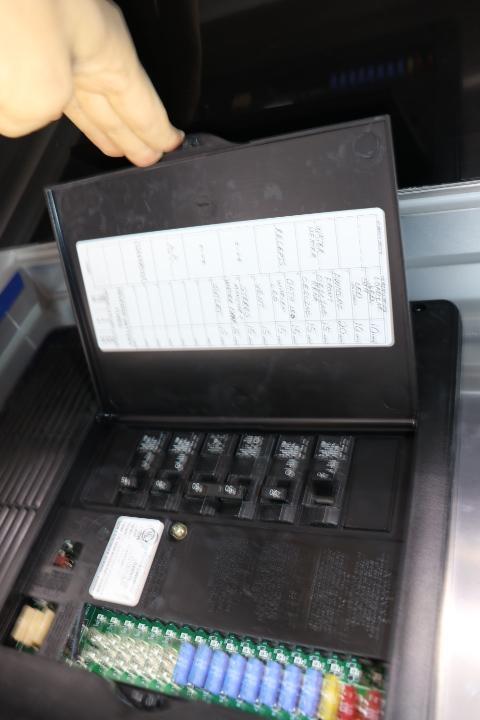

* 12V Fuse Panel
* 60 Amp Converter for 12V

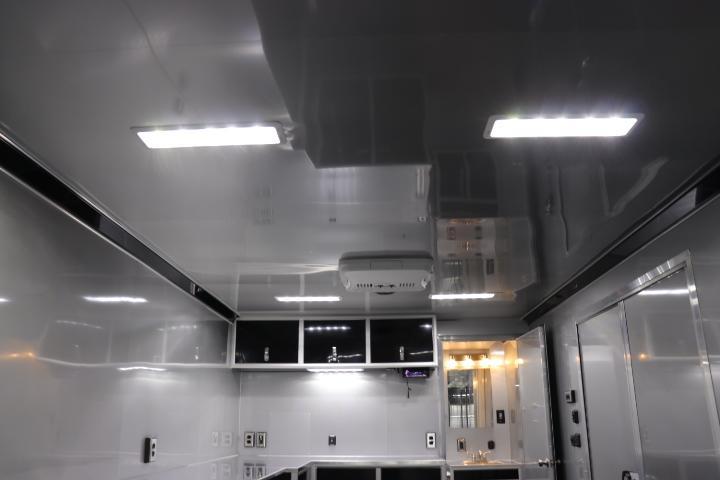

* (4) 12V 18" LED Interior Lights -
Replaces Domes
* (3) 20 Amp Interior Recepts
* (1) 20 Amp Exterior Recepts
* 3 Way Light Switch for Interior LED Lights
* 12V Cutoff Switch
* Upgrade to Panel Lite Exterior Lights
* (2) 12V Surface Mount LED Flood Lights
* Upgrade to Dual Brake Lights

**Interior Upgrades**

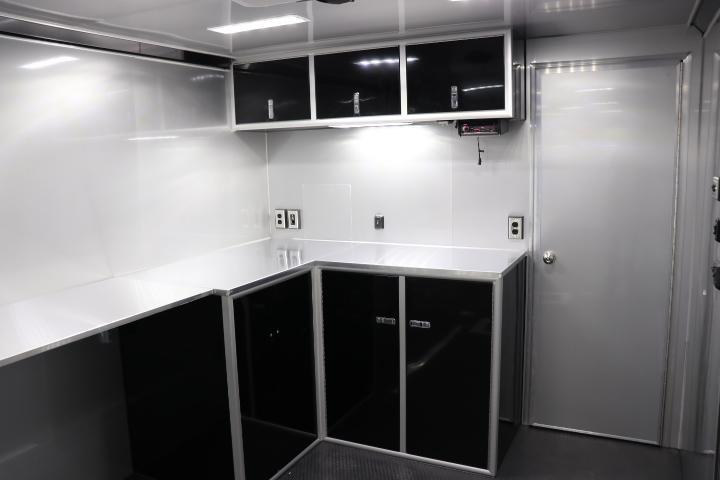

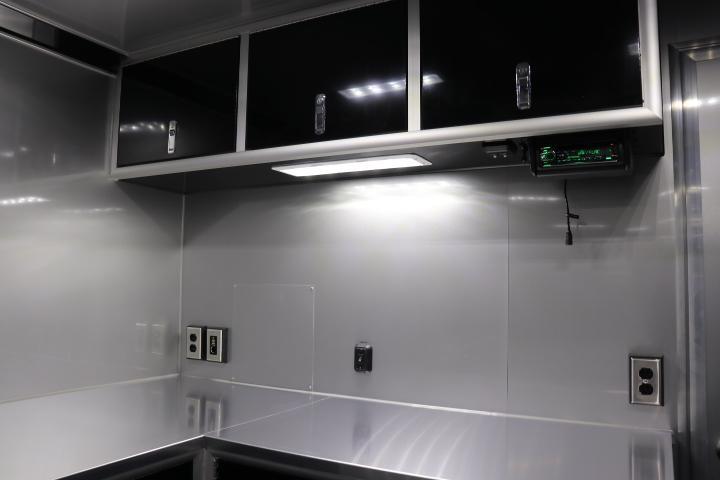

* 8' Premium Aluminum L Shaped Lower Cabinet

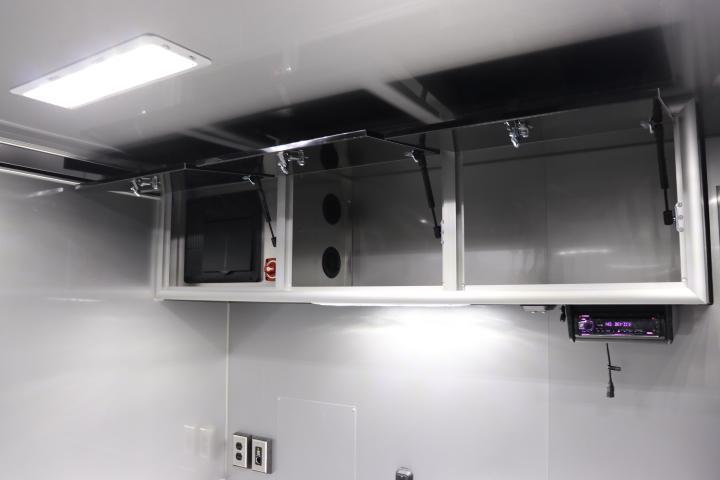

* 8' Premium Aluminum Upper Cabinet
* Add Roof Vent w/ Wire for Future AC

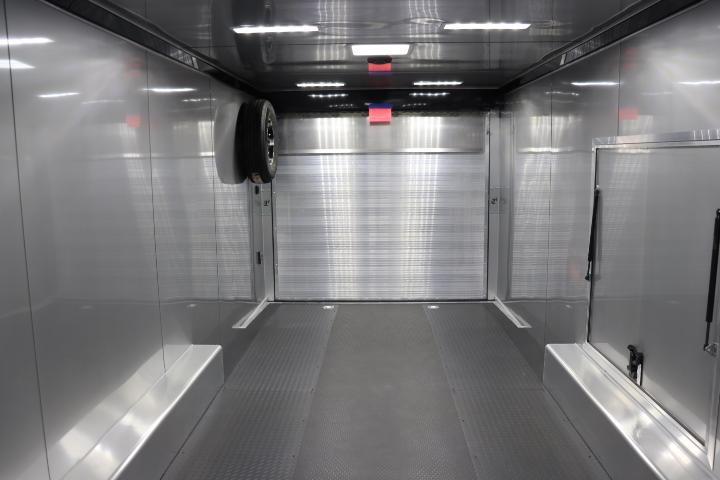

* Extruded Aluminum Floor
* Extruded Aluminum Ramp

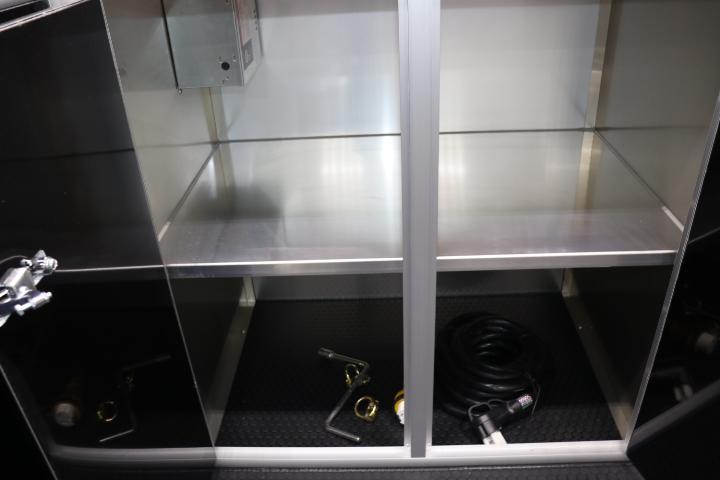

* Gen Compartment in L Cabinet
* LED Light Under Upper Cabinet
* One Piece Aluminum Transition Flap
* Screwless Aluminum Walls & Ceiling
* 8' Interior Height Maximum w/ Package

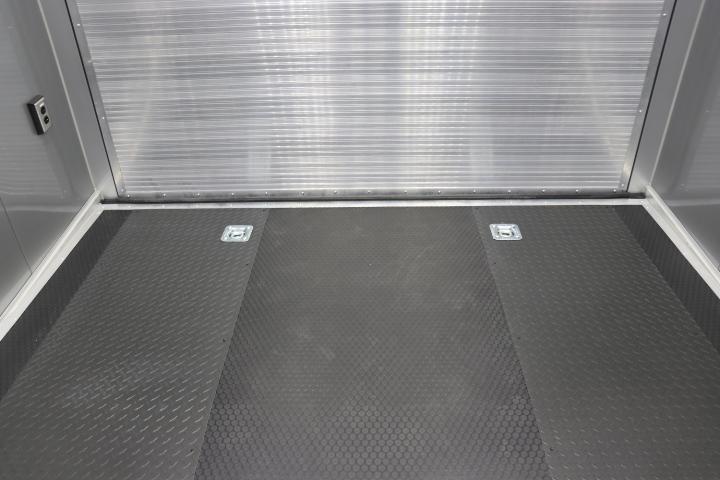

Downgrade to Black Coin Floor From Extruded Floor/ Ft - Full Warranty Requires Runners - Extruded Aluminum Ramp Door

Upgrade from Surface Mount LED Flood Light to Whelen 900
Series Super LED - Dimmer Switch Included

**Tag Full Bath Package** Fixtures - RV Style Plastic Toilet - Rectangular Shower w/ Glass Door - Stainless Steel Single Bowl Sink
| - Aluminum Base Cabinet for Sink w/ Toekick - Mirror Above Sink - Aluminum Linen Closet - Partition Wall w/ 28" Man Door

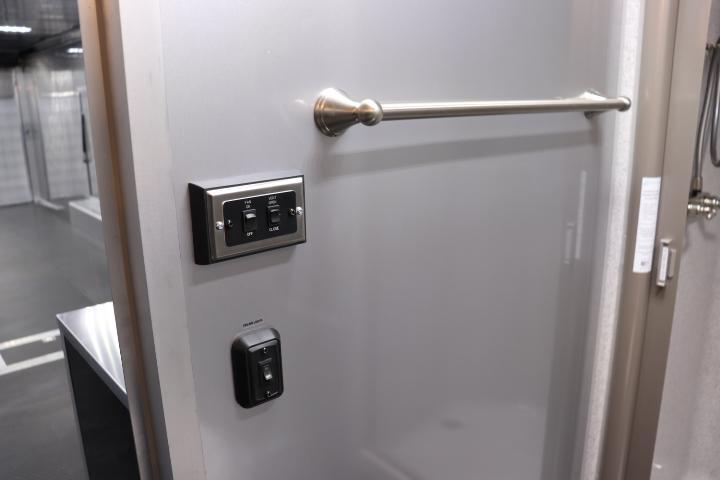

* (2) Towel Holders - (1) TP Holder
* Flooring & Wall Coverings As Optioned
* Minimum 7' Interior Height

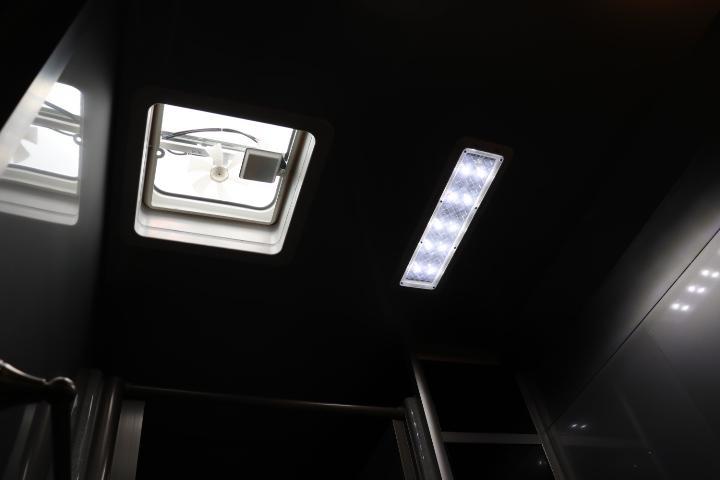

* 12V Power Roof Vent

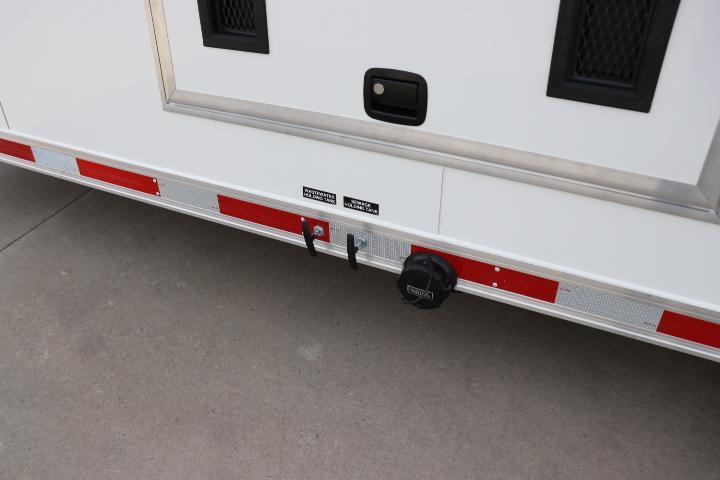

* Under Trailer Dump Valves
* Tank Monitor Panel
* City Water Hookup
* Gravity Water Fill
* 10 Gallon 120V Hot Water Heater
* 12V Water Pump - 3.0 GPM
* 90 Gallon Fresh Water Tank
* 38 Gallon Gray Water Tank
* 38 Gallon Black Water Tank
* (1) 120V 20A Outlet
* 12V 18" LED Light

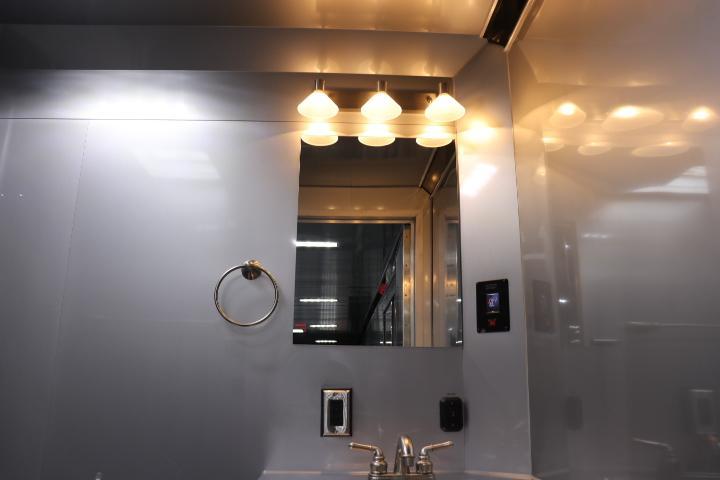

* 12V Sconce Light Above Mirror
* Does Not Include 12V or 120V Power

Rear Caster Wheels - Pair Weight Distribution Prep - Blocks for Wedge - Plates for
Flat Nose

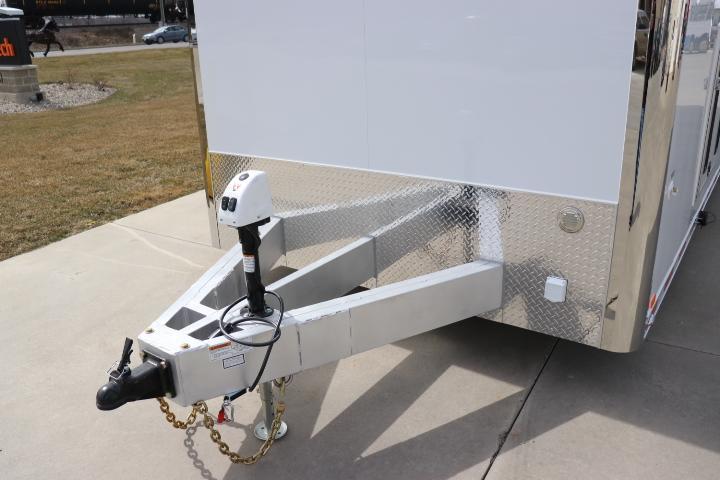

Upgrade to 3500# Front Power Jack - Battery Not Included Std: White Jack on White Trailers | - Std: Black Jack on All Other Color Trailers

Spare ST235/80R16 on Steel Wheel Upgrade to Aluminum 16" Wheel From 16" Steel

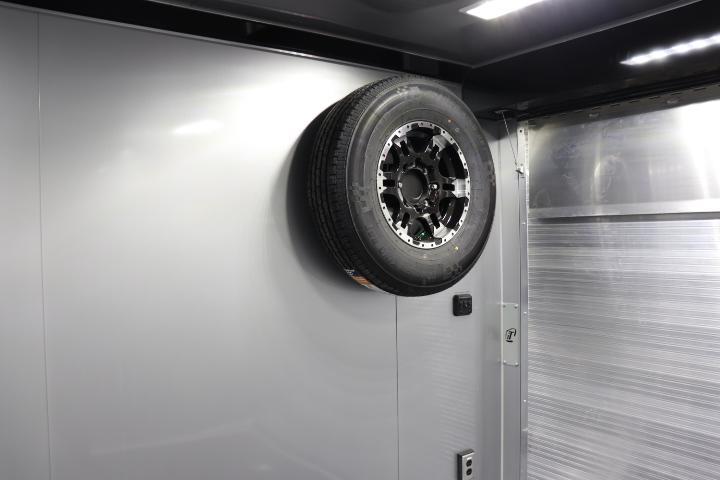

Wheel - Per Wheel Spare Tire Wall Mount Upgrade to 60" 405 Series Double Door Generator Slides for Portable Gen w/ Gen Shelf Add Dual USB Charging Ports - 12V 120V 20A Recept - GFI Protected Where Required Add 12V 18" LED Interior Light - Maximum of (8) Per Switch

Add Panelite LED Clearance Light (Ea) Add Black Anodized 24" Wide ATP Runner / Ft

Add Carpet on Interior Walls - 34" High / Ft Insulated Walls & Ceiling - R4 Rated (Up to 18"
Additional Height) / Ft- - Bubble Foil Insulated- Ceiling
| - EPS Insulated Walls

Add 4' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim - Standard: 16.5" x 14"

Aluminum Countertop - 24" Flip Up / Ft - Stores Folded Down Against Wall

Add Airline Track Airline Track Double Stud Tie Down Ring Upgrade to Lowered Skirt w/ Reverse Beavertail Design -

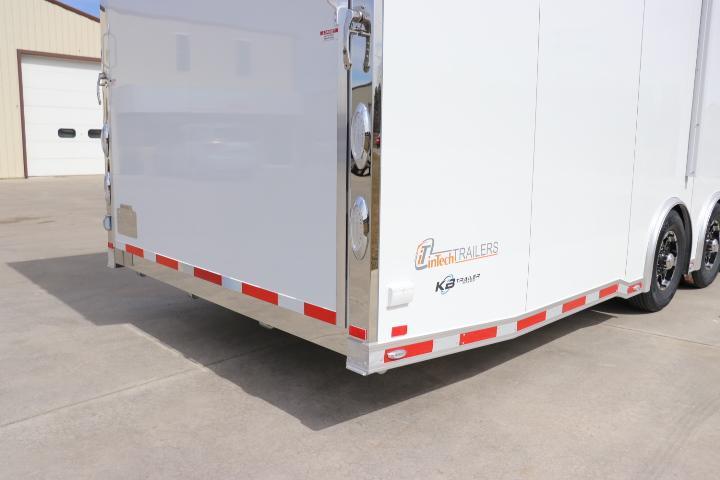

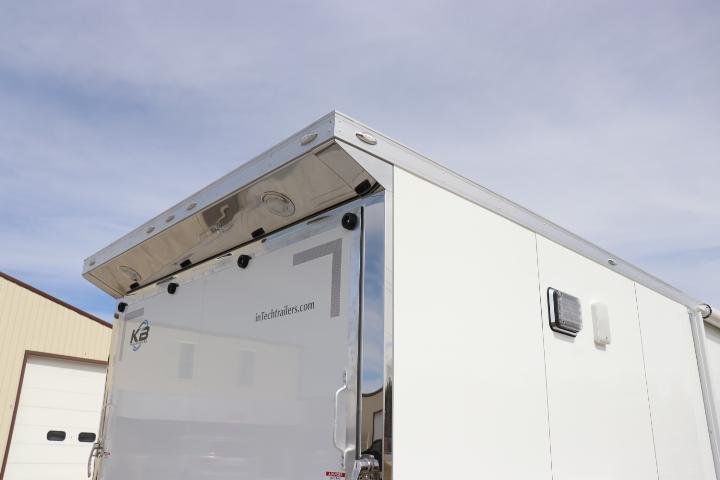

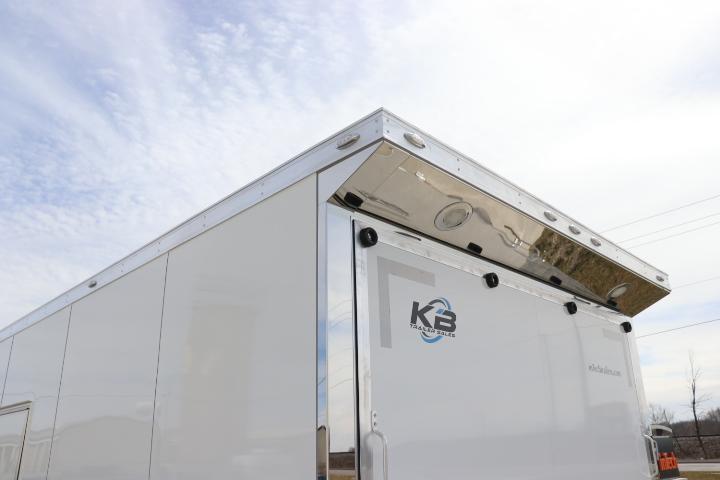

Triple Axle Color Matched Rear Spoiler -

* Specify Original or New
Style- Includes (2) Integrated LED Loading Lights
* Original Style - Color Matched to Rear Header -
* New Style - Requires SS Rear Header &
Posts

Wiring for Loading Lights on Rear Spoiler to Activate as
Reverse Lights Add Awning - 20' Dometic w/ Weathershield - 12V Power
Awning

* Std: Pewter Vinyl w/ White Hardware on White Trailers
* Std: Pewter Vinyl w/ Black Hardware on All
Other Colors
* Includes Awning Cradle

Add 13,500 BTU A/C - Std Height (13.5") -

* Standard: White Exterior Cover on White
Trailers - Standard: Black Exterior Cover for All Other
Colors

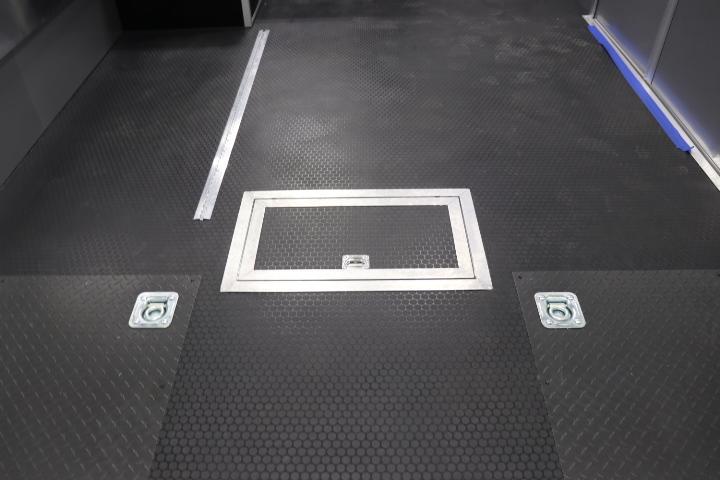

Upgrade to Heat Strip for A/C In Floor Winch Box w/ Pulley - Angled Mount - Designed for SuperWinch S5500-SR or Warn
ProVantage 4500-S

5000# Winch w/ Wireless Remote Control & Synthetic
Rope Add AM/FM/CD Sirius Ready Bluetooth Stereo w/ Four
Interior Speakers Add Premium Fusion Soundbar on Exterior - Includes
Amplifier if Needed
